2.5 – 2-Way 8 Way Adjustable Remote Reservoir Coil Over

$875.00$900.00

New to the Profender Family in 2019, this Coil Over has all the same features as the regular 2.5 Coil Over but with an added feature of 2 adjustable areas to adjust the rebound and the compression.

  • SPRINGS NOT INCLUDED
  • Above attachment is available below to the left. Click Attachment tab and click the download button to get this Bill of Material of the product.
SKU: N/A Categories: ,

Description

New to the Profender Family in 2019, this Coil Over has all the same features as the regular 2.5 Coil Over but with an added feature of 2 adjustable areas to adjust the rebound and the compression.

Profender shocks are fully rebuildable, servicable and retuneable. This means you only have to buy them once and you can alter them if you change the weights of the vehicle or you put them in another vehicle.

All spare parts are available and Profender can rebuild, service or revalve these shocks. Or if you have the time Profender can supply you with shims and spares if needed to do any tuning that may be required.

When choosing coils these are slightly different then the other coilover models we carry.

** Lower spring is the heavier weight than the upper spring**

For a 12″ coilover choose a 12″ lower and 12″ upper coil.
For a 13″ coilover choose a 14″ lower and 12″ upper coil.
For a 14″ coilover choose a 14″ lower and 14″ upper coil  OR 16″ lower and 12″ upper coil.
For a 15″ coilover choose a 16″ lower and 14″ upper coil.
For a 16″ coilover choose a 16″ lower and 16″ upper coil  OR 18″ lower and 14″ upper coil.
For a 17″ coilover choose a 18″ lower and 16″ upper coil.

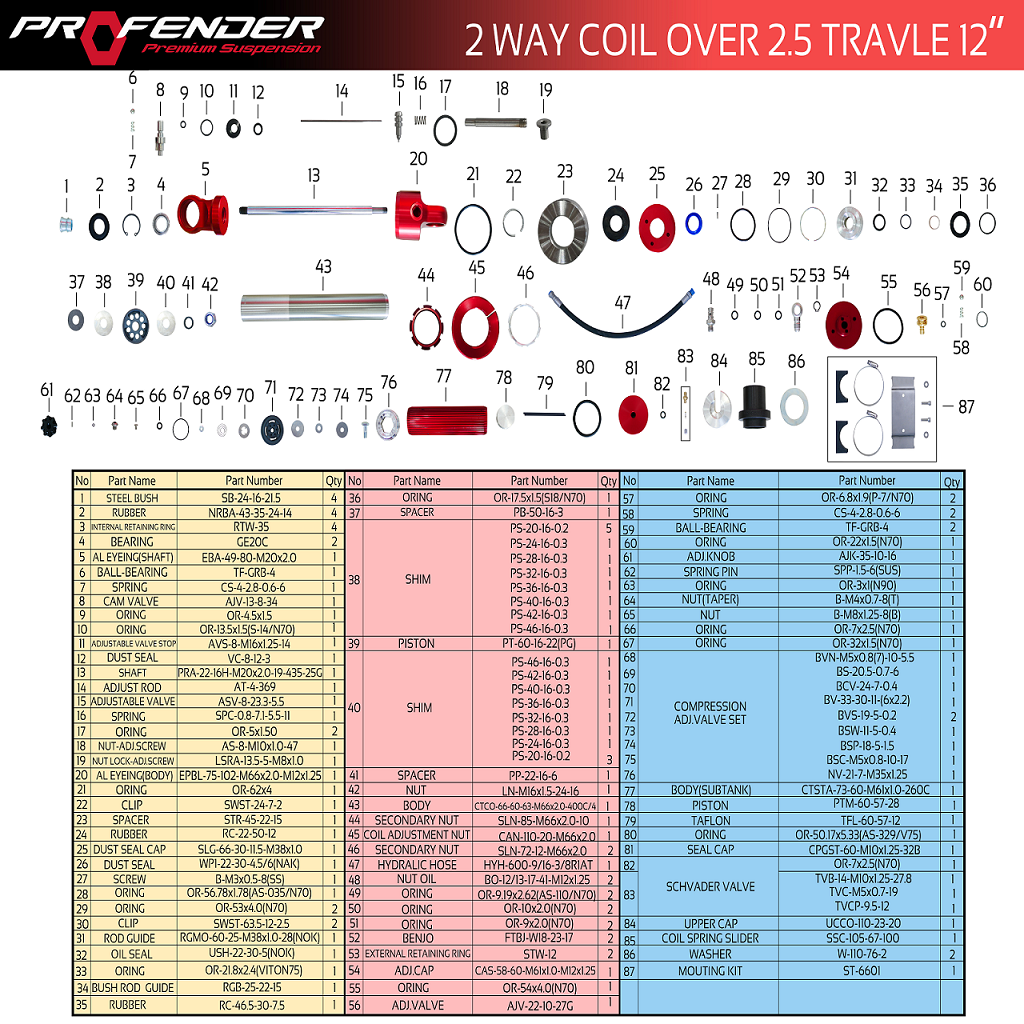

2.5 Coilover 2-way 8 way Adjustable BOM

Download

Bill of Material for the Profender 2.5 Coilover 2-way 8-way Adjustable. Can be viewed and/or downloaded so can see the parts and part numbers that make up the coilover. Also to see what you may need for parts to rebuild/repair or just have extra for just in case.

Specifications

Part Number Travel Open Length Closed Length Pressurize
COB-ARC-32-12 12" 32" 20" MIN 100 psi - MAX 250 psi
COB-ARC-34-13 13" 34" 21" MIN 100 psi - MAX 250 psi
COB-ARC-36-14 14" 36" 22" MIN 100 psi - MAX 250 psi
COB-ARC-38-15 15" 38" 23" MIN 100 psi - MAX 250 psi
COB-ARC-40-16 16" 40" 24" MIN 100 psi - MAX 250 psi
COB-ARC-42-17 17" 42" 25" MIN 100 psi - MAX 250 psi
