Bumpstop 2.5

$330.00 – $350.00

Bore Size 60 mm
Hard Chrome and Induction Shaft 40 mm
Rebuildable and Tuneable
Available in Travel 2″ , 3″ & 4″
Body Chrome+ Finished

Mounting Can Sold SEPERATELY

  • Above attachment is available below to the left. Click Attachment tab and click the download button to get this Bill of Material of the product.
SKU: N/A Categories: ,

Description

Profender Bumpstop Series allows travel shocks to reach the maximum performance as needed. The Profender Bumpstop 2.5 is the ultimate solution to provide an additional level of bottoming control, so that you are able to use the full range of your suspension travel without taking the risk to damage parts of your suspension. With the Bumpstops important components will be protected to take damage as the result of hard hits.

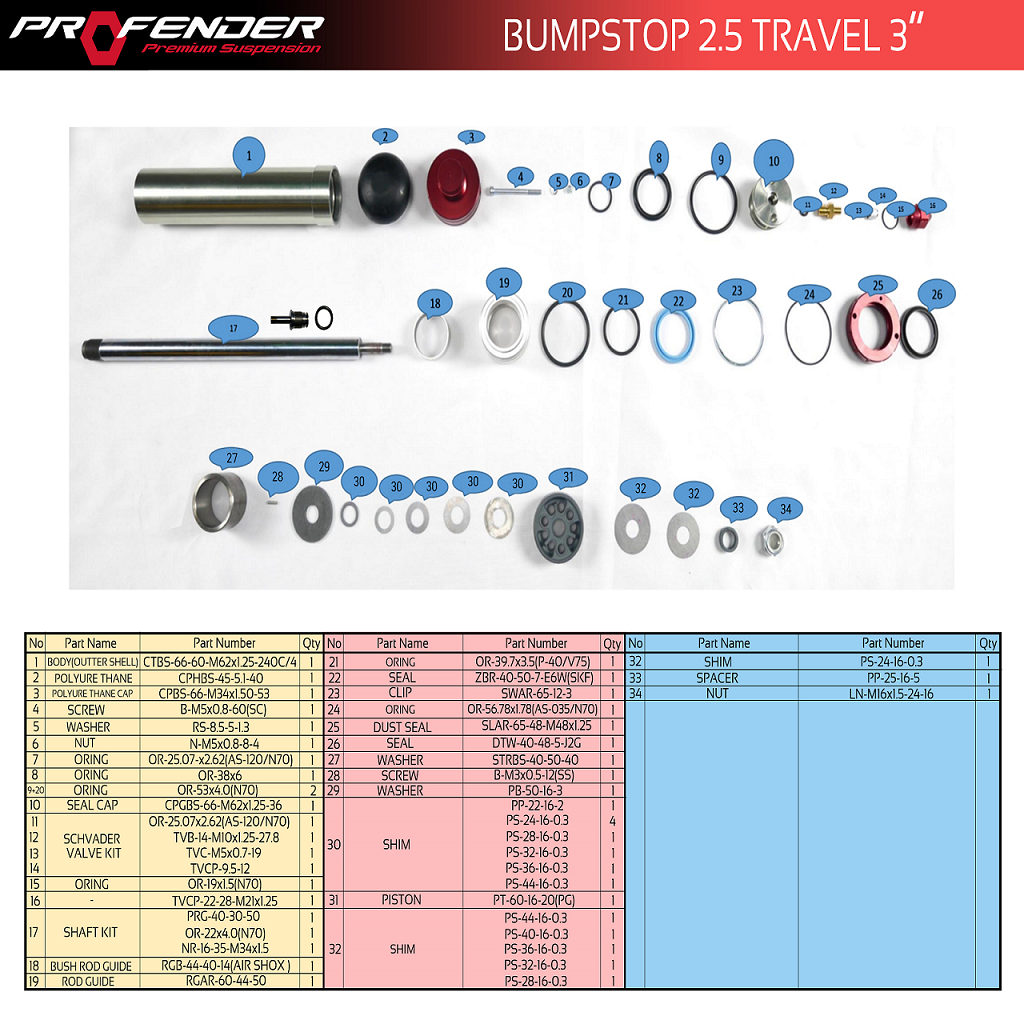

2.5 BumpStop BOM

Download

Bill of Material for the Profender 2.5 BumpStop. Can be viewed and/or downloaded so can see the parts and part numbers that make up the coilover. Also to see what you may need for parts to rebuild/repair or just have extra for just in case.

Specifications

Part Number Travel Open Length Closed Length Pressurize OIL VOLUME
BS25-40-20 2.0" 13" 11" Min. 100 psi - Max. 400 psi 120 cc
BS25-40-30 3.0" 15" 12" Min. 100 psi - Max. 400 psi 160 cc
BS25-40-40 4.0 17" 13" Min. 100 psi - Max. 400 psi 200 cc
