Bypass 2.5

$925.00 – $950.00

  • Piston 60 mm
  • Rod 22 mm
  • Outer Shell 62 mm
  • High Quality Shim Valve
  • Rebuildable
  • Endurance and High Performance
  • 2 Tubes Adjustable Compression Damping Force
  • 1 Tubes Adjustable Rebound Damping Force
  • Min Nitrogen Gas Pressure 100 psi
  • Maximum Nitrogen Gas Pressure 250 psi

  • To Buy a Set it comes as a L and R. (left and right)

    • Above attachment is available below to the left. Click Attachment tab and click the download button to get this Bill of Material of the product.
SKU: N/A Category:

Description

Designed to enhance the performance of your recreation or race vehicle, these Profender 2.5 bypass shocks are available in 10″, 12″, 14″, and 16″ travel to fit a wide variety of applications. Both ends utilize a self lubricated ball bearing designed for heavy and competition use. End caps come standard with red anodizing.

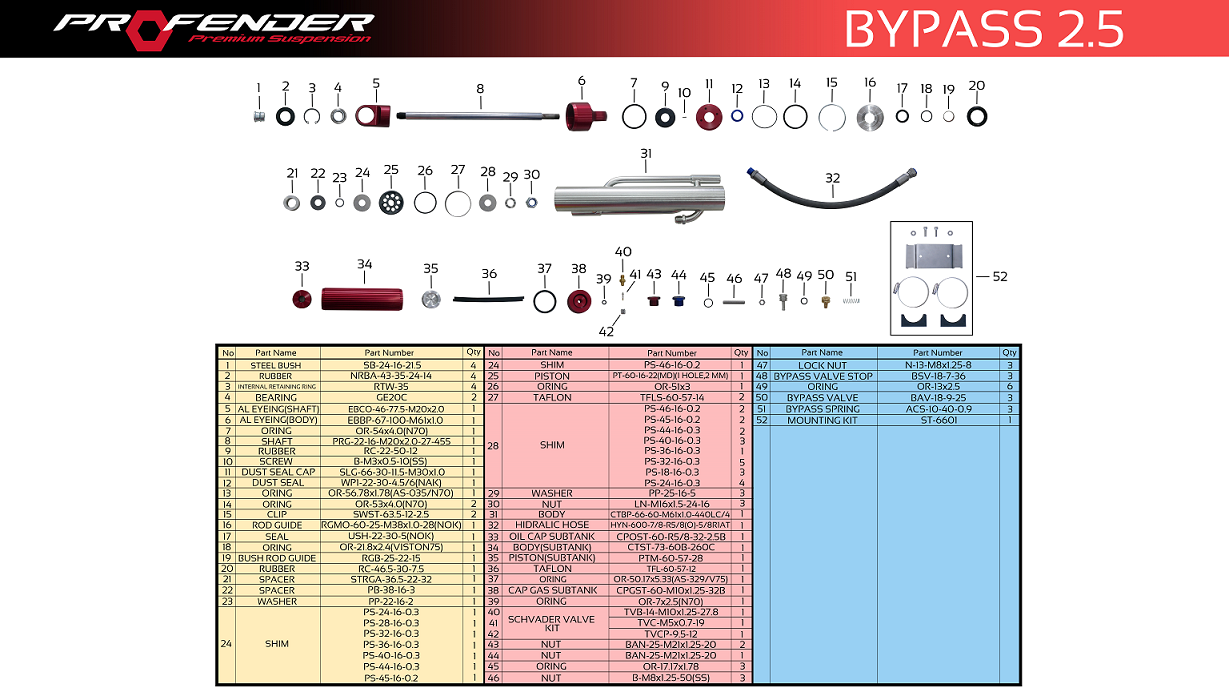

2.5 ByPass BOM

Download

Bill of Material for the Profender 2.5 Bypass. Can be viewed and/or downloaded so can see the parts and part numbers that make up the coilover. Also to see what you may need for parts to rebuild/repair or just have extra for just in case.

Specifications

Part Number Open Length Closed Length Travel Pressurize
BP-10-30F-16L 30" 20" 10" MIN 100 psi - MAX 250 psi
BP-10-30F-16R 30" 20" 10" MIN 100 psi - MAX 250 psi
BP-12-34F-16L 34" 22" 12" MIN 100 psi - MAX 250 psi
BP12-34F-16R 34" 24" 12" MIN 100 psi - MAX 250 psi
BP-14-38F-16L 38" 24" 14" MIN 100 psi - MAX 250 psi
BP-14-38F-16R 38" 24" 14" MIN 100 psi - MAX 250 psi
BP-16-42F-16L 42" 26" 16" MIN 100 psi - MAX 250 psi
BP-16-42F-16R 42" 26" 16" MIN 100 psi - MAX 250 psi
