Bumpstop 2.0

$235.00

52mm outer bode body
32mm piston rod suited for any use
100% QC Tested
Made of high quality material that provides superior performance
Aluminum components are machined for excellent tolerance
Contact pad is made from highly precise specification polyurethane
Luxurious design

Mounting Can Sold SEPERATELY

  • Above attachment is available below to the left. Click Attachment tab and click the download button to get this Bill of Material of the product.



SKU: N/A Categories: ,

Description

Profender Bumpstop Series allows travel shocks to reach the maximum performance as needed. 3.0 inches and 4.0 inches stroke are made to handle all suspensions. Best Piston provides ultimate performance that comes with high precision and super polished shafts. They are chromed and inducted to add more strength for heavy duty use and all other road conditions.

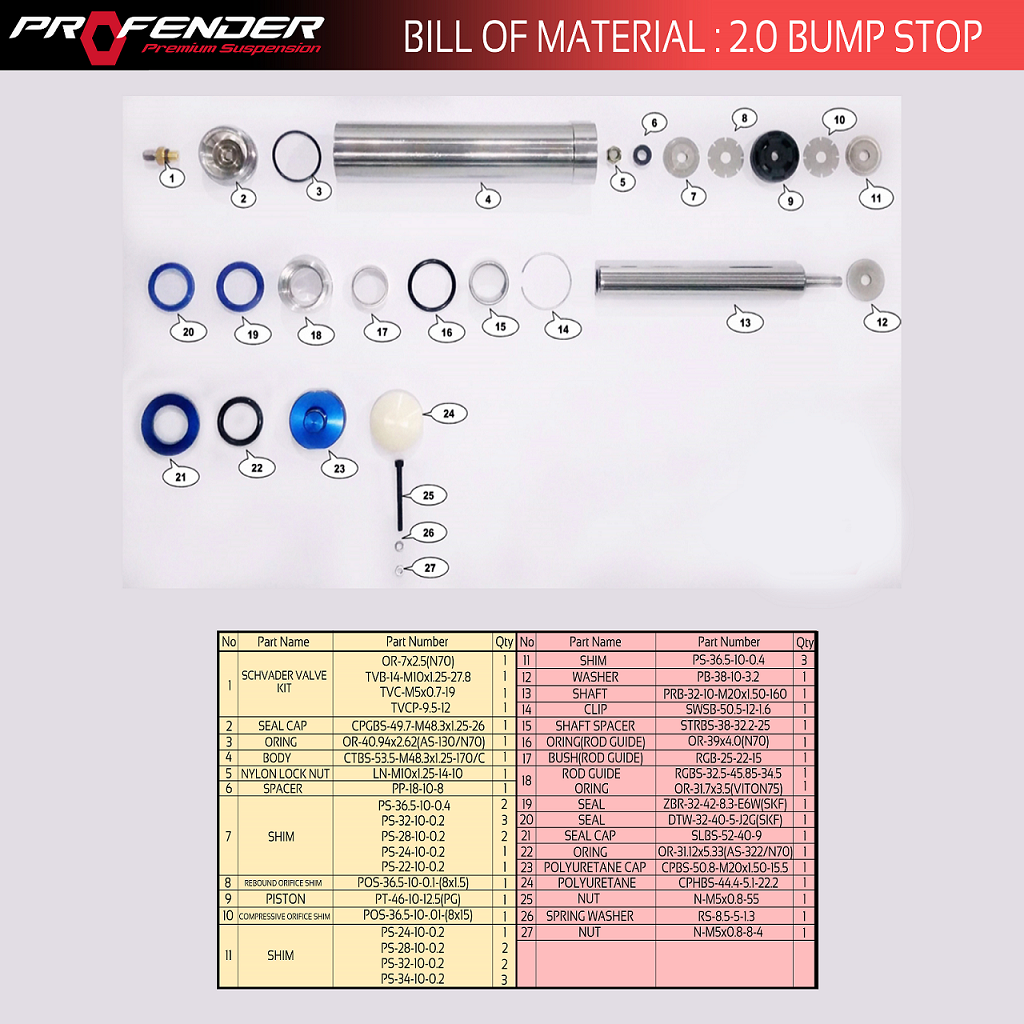

2.0 BumpStop BOM

Download

Bill of Material for the Profender 2.0 BumpStop. Can be viewed and/or downloaded so can see the parts and part numbers that make up the coilover. Also to see what you may need for parts to rebuild/repair or just have extra for just in case.

Specifications

Part Number Open Length Closed Length Stroke Rod Outershell Pressurize OIL VOLUME
BS-3000 13.42'' 10.35'' 3'' 32mm 52mm Min. 100 psi - Max. 400 psi 70 cc
BS-4000 15" 11" 4" 32mm 52mm Min. 100 psi - Max. 400 psi 90 cc
